Coconut Shell Carbonization Furnace

You are here: Home » Carbonization Furnace » Coconut Shell Carbonization Furnace

Coconut Shell Carbonization Furnace 1Raw material: Rice hull, coconut shell, sawdust etc
Capacity/h: 1200KG
Temperature compensation line: 100m
Main power: 18.5kw
Overall dimension: 1.6*2.2*8.5 m³
Host size: D2.6m
Carbonization volume: 3-5m³
Certificate: CE/ISO/SGS

Carbonization of biomass is a combustible waste (sawdust, wood, plant stalks, rice husks, sewage sludge)) as raw materials, “High temperature pyrolysis, flue gas volatile sulfur release carbon enrichment” process made “man-made carbon “byproducts and waste disposal technology. Incomplete thermal biomass occurring in the absence of air and other oxidizing atmosphere degradation of the situation, to produce charcoal and other products of the process.

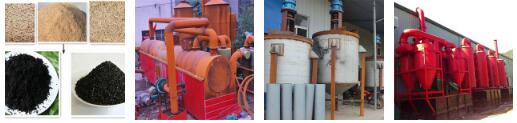

Coconut Shell Carbonization Furnace 2

The Detail of the Coconut Shell Charcoal Making Machine

The coconut shell charcoal making machine convert coconut shell into actived carbon ,coconut shell charcoal.Our carbonization furnace include a carbonization plant and the three raw material container, each container coking takes about 10 hours, a day (24 hours) can be made about 1.5-2 tons of charcoal.
This carbonization furnace is the hoisting type carbonization furnace.It contains the main carbonizing apparatus and raw material container. Our hoisting type carbonization furnace generally include the main carbonizing apparatus and three raw material containers. Three containers can be recycled. A container in the firing time probably need to fire 10 hours, after the completion of the fire the container need for cooling. Charring time under normal circumstances need 10-18 hours .Under the condition of the water, charring time takes about 8 hours.A container after carbonization, put the second container in the main carbonizing apparatus to fire. Three containers main realize loading , carbonization, cooling cycle. Per day two containers can be carbonized,making charcoal production is around 1.5-2t . So according to your needs, you can consider you need how many carbonization furnaces.

Security Design

1.Central control can be designed according to the customer’s request, which can be separate the operator and machine.
2.Combustible gas was recycled to the burner, combustion device with pressure gauge, pressure relief valves and electronic ignition device.
3.Configured with the casing (protective shell), which can prevent the body contacting the high temperature directly.
4.Power supp;y section has a standardized control system to ensure safety.
5.Professional desulfurization, smoke-remove, cooling system.
6.Configured with sealing system, ensure the environment cleanliness and production safety.

End product of the biomass furnace:

After the process which includes high temperature pyrolysis, volatile gas, sulfur emission, carbon enrichment of garbage disposal technology, the end product we get is man-made carbon which owns fixed higher carbon content (about 90%), Compared with the general coal, it is about twice its carbon content ( usually fixed carbon content of coal is 55% ). Besides, it is a new type of high-grade fuel with good flammability, while some biomass after carbonization has very strong activation (it can be activated up to 75%), There is no doubt that it is an ideal material for manufacturing activated carbon. Activated carbon can be processed by our carbon black processing plant to get fine activated carbon.

Wide usage of the end product-biomass carbon

1. Use as the fuel in the factory;
2. Sell them as the fuel in the market;
3. Mill them to charcoal powder and export them to International market.
4. Use as the active carbon for waste water recycling.
5. Use as the materials for new road bricks.
6. Use as the active carbon for other usages.
