Tire Sidewall Cutter

You are here: Home » Tire Pretreatment » Tire Sidewall Cutter

When tire pyrolysis and recycling, you will have a problem that tires is thick and hard to curve, so before feeding the waste tires into reactor, it is better to cut the tire sides down. So we can know Tire Sidewall Cutting is the important step before tire pyrolysis and recycling, sidewall cutting machine is used to separate the tire side from the whole tire Besides, this part of tire has good value, circle cutting machine helps collecting these thick steel wires.

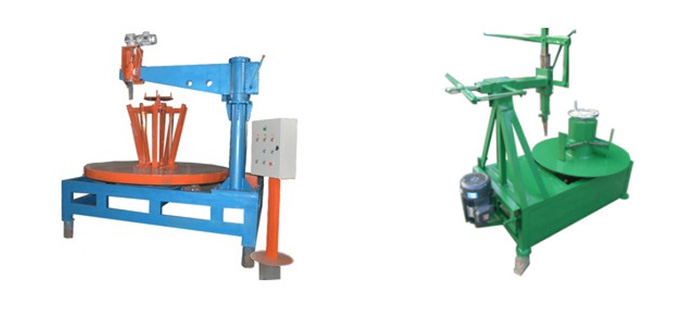

Tire Sidewall Cutter 1


Tire Sidewall Cutter 2Technical Parameters:
Power               2.2KW
Size of tires      φ825~φ1200mm(OD)
Size                 1200×850×1405mm(L×W×

Application:
Tire Sidewall Cutter is used to separate the tire side from the whole tire. Now the steel wire from tire sides of vacuum tires is thick and hard to curve, so before feeding the waste tires into reactor, it is better to cut the tire sides down. Besides, this part of tire has good value, tire sidewall cutter helps collecting these thick steel wires.

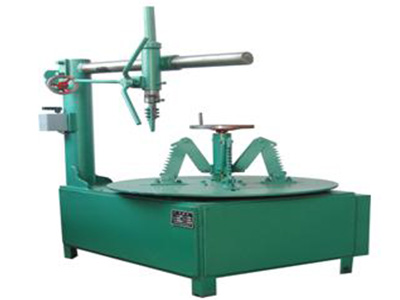

Tire Sidewall Cutter 3Structure and Principle of Tire sidewall Cutter

The tire ring cutting machine consists of frame, rotate mechanism, prop mechanism and knife mechanism.
First, put the tire on the platform, then rotate the hand wheel, the three claws will stick the inner tire firmly.
Second, start the power in a low speed by reduction drive mechanism, and work platform will rotate. Knife is set on the machinery panel and it can be moved forward and back at one’s ease.
With the rotating of the tire, the knife cuts into the tire to cut open it successfully.


Features:

1. tire is easily placed, so you can have a high output and efficiency.
2. simplicity of operation.
3. long service life.
4.environmentally friendly, no waste gas, no residual, no polluted water, meeting the environmental requirement of the government.
5. simple structure, light weight, less occupied area.
6.knife is made from alloy, hard wear resistant, can be used after repeatedly grinding
7. shear force, low energy consumption, safety.
8. our electric ring cutter is very popular in this rubber raw material machinery in China and abroad
