Pre-Process Equipment For Tire Pyrolysis Line

You are here: Home » Tire Pretreatment » Pre-Process Equipment For Tire Pyrolysis Line

Pretreatment refers to the final processing conducted before the perfect preparation process during the waste disposing. They are mainly used for the pyrolysis plant. We manufacture high quality tire processing equipment,including pre-process equipment for used tire pyrolysis line,tire rubber powder production line,tire rusher,hook wire drawing machine,tire cutting machine.etc.in china.

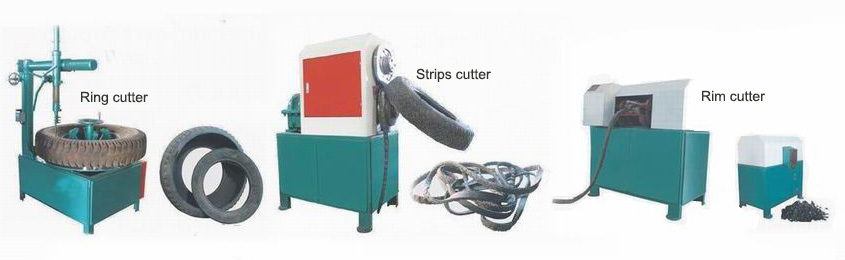

Pre-Process Equipment For Tire Pyrolysis Line 01

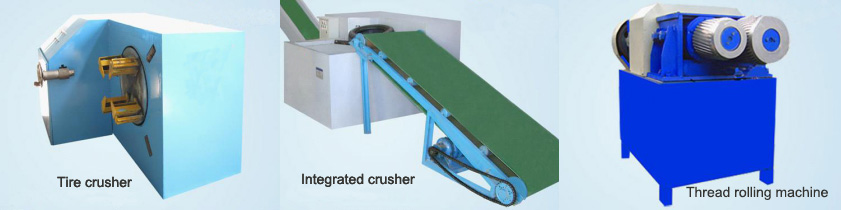

Pre-Process Equipment For Tire Pyrolysis Line 02

Pre-process Equipment For Tire Pyrolysis Line’s mainly use tire crusher to crush tire into 5mm or less. Because of it, pyrolysis process become much easier and much efficiency.

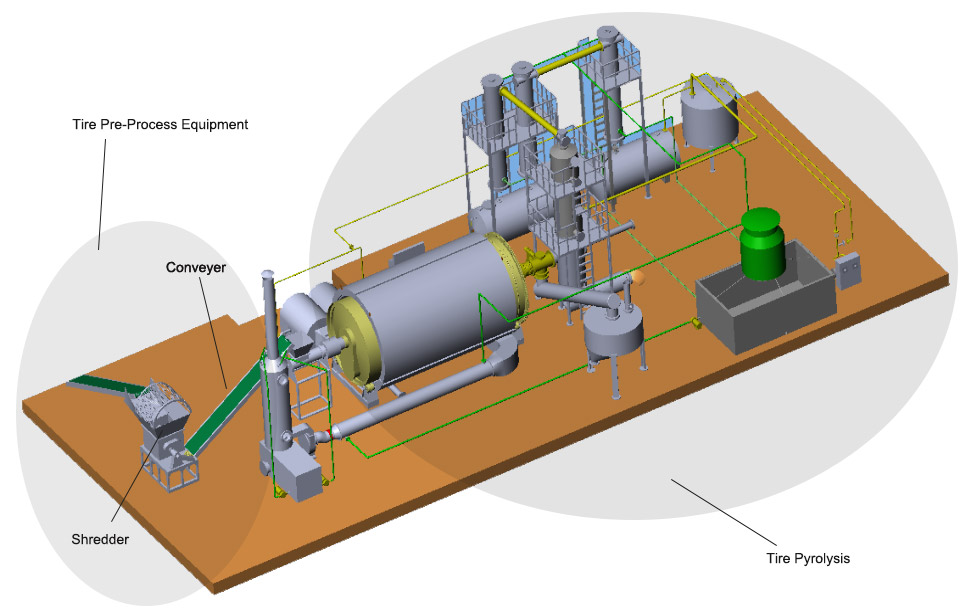

Process flows

Waste tire – Hook wire drawing machine – tire cutting machine – tire shredder – belt conveyor – Reactor – pyrolysis oil

Pre-Process Equipment For Tire Pyrolysis Line 03

Hook Wire Drawing Machine

Pre-Process Equipment For Tire Pyrolysis Line 04

Name Hook Wire Drawing Machine
Model 1200
Capacity(pcs/h) 60-120
Handing tire(mm) ≦Φ1200
Motor(kw) 18.5
Overall dimensions(mm) 2300*2000*1530

Hook Wire Drawing Machine can pull the steel from bear inside the tire completely, after that, the tyre will be easy crushed and cut.

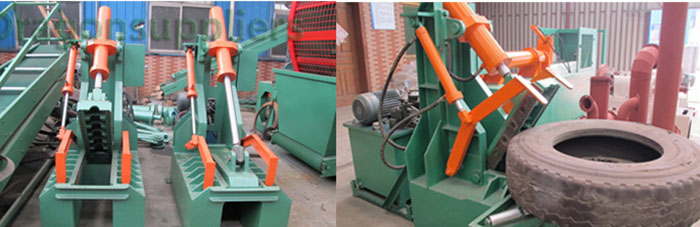

Tire Cutting Machine

Pre-Process Equipment For Tire Pyrolysis Line 05

Name Tire Cutting Machine
Model J3000
Capacity(pcs/h) 60-120
Handing tire(mm) ≦Φ3000
Motor(kw) 18.5
Weight(t) 25

Use: To cut off the tire block and strip, apply to cut all kinds of diagonal tire, rail tyre and tyre strip.
Large shear knife, good shear effect, as well as low energy consumption.
Use the hydraulic system, easy to operate, and very safe.

Features of the Tire Cutting Machine:

1. Operators and machine are separated when working, easy and safe operation.
2. High efficiency, less labor.
3. Low energy consumption,which can save more cost.
4. Quality assurance can satisfy continuous production.
5. Output size can be adjusted accordingly, meet customer’s different request.
6. Cutters are made of high-quality strength wear-resistance alloy, long service life, can be repaired many times.
7. Output size are uniformed, which is convenient for the next working process, can match oil refinery machine, advance oil extraction rate.

Note:
Pretreatment refers to the final processing conducted before the perfect preparation process during the waste disposing. Tire cutting machine plays a important role in the process, so if you need it ,please Contact Us to let me give you further information.

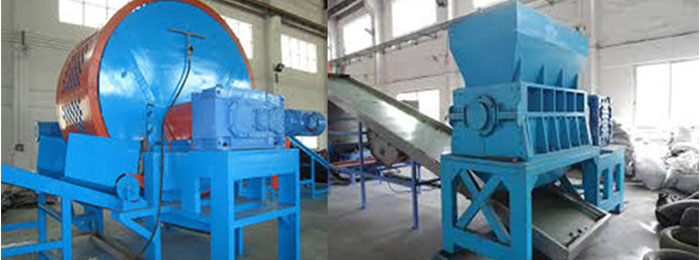

Tire Crusher

Pre-Process Equipment For Tire Pyrolysis Line 06

Name Tire Crusher
Model 900 1200
Capacity(t/h)  1-3 2.5-5
Feed size(mm) ≤Φ900 ≤Φ1200
Specification of the Material(mm) 50*50 50*50
Motor power(kw) 20*2+1.5+0.5 45*2+3
Spindle speed(rev/min) 16 12
Overall dirmensions(mm)  2000*2500*2800 4000*3400*3700
Weight(t) 6.8 18

Tire Crusher can be used to shred used tyre into rubber block. The main parts includes:
tire hoist, power system, knife set for shredding.

Tire crusher machine that breaks the tire strips from the tire crusher into 6-12mm powder granules at normal temperature,

Features of the Tire Crusher

1.Particular structural design can absorb the noise and dust generated during production.
2.Exclusive water cooling system to assure the machine running in high speed under normal temperature.
3.Particular cutter structure, in order to cut reasonable, reduces power consumption, length use period.

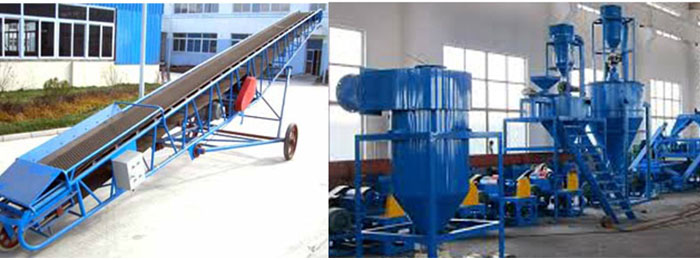

Belt Conveyor

Pre-Process Equipment For Tire Pyrolysis Line 07

Name Belt Conveyor
Model 500、650、900、13000
Capacity(pcs/h) 1000-10000
Conveying Length(m) 4-10
Conveying height(m) 1-5
Conveying width(m) 500-1300
Conveying speed(m/min) 10-30

This conveyor is designed to convey the whole tire and rubber block.
